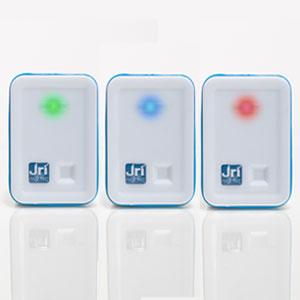

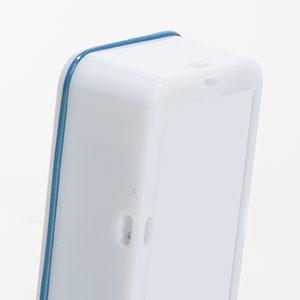

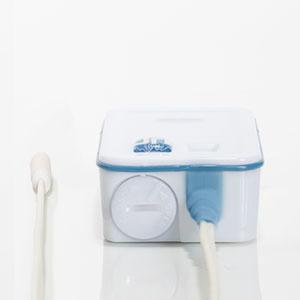

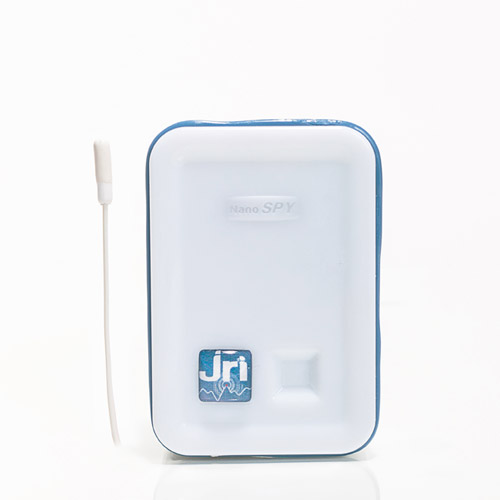

Mini temperature data logger with 2 measurement sensors
The Nano SPY TWIN sensor is designed to measure and record temperature of thermo-controlled cabinets using its external sensors. It can be secured with its integrated magnet outside the chamber.
It is particularly suitable in the pharmaceutical and food industries and allows to double its monitoring thanks to its two sensors in order to optimize the accuracy.
The Nano SPY TWIN is the perfect combinaison between the ambiant temperature sensor Nano SPY T1 and the external temperature sensor Nano SPY T2.
It monitors the temperature from -30°C to +70°C (internal sensor) and from -50°C to +105°C (external sensor), then transmits data to a nearby Nano SPY LINK transmission module, by 2.4 GHz radiofrequency communication.
The measurements are sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application.
If thresholds are exceeded, alerts are transmitted in real time to react immediately.
BENEFITS
- Many monitoring possibilities :
- 2 equipment side by side with a single device
- a mixed enclosure
- the High and Low temperatures of the same enclosure
Specifications
- Measurement range :
- Ambient probe - Internal : -30°C to +70°C
- PT100 Probe - External : -50°C to +105°C
- Accuracy :
- Ambient probe - Internal : +/- 0,3°C from -18°C to +50°C and +/- 0,5°C out of this range
- PT100 Probe - External : +/- 0,2°C
- Response time : 2 milliseconds
- Communication frequency : 2,4 GHz
- Memory: 10 000 data points
- Sensors : Internal PT100 probe / External PT100 probe - 5 x 20 mm
- Case Dimensions & Weight : 63 x 42 x 25 mm - 60 g
- Power supply : Lithium 3,6V replaceable battery
- Battery life : 6 years
- Identification ring : Blue
- Part nrs :
- with battery : 11541 E
- without battery : 11541 X
