Mini Temperature Data logger Nano SPY Reference

Expired
  • Number of sensors: High concentration of sensors up to 30 meters, Few sensors, Many sensors spread over an extended area
  • Parameters to be monitored: Temperature or temperature and humidity only
  • Area covered by the Lorawan Network: No
  • Real-time data management: Consultation of data and exceeding thresholds when goods are received without any action
  • Type of transport: Global, National
  • Sensor location: Locate the area where the sensor is

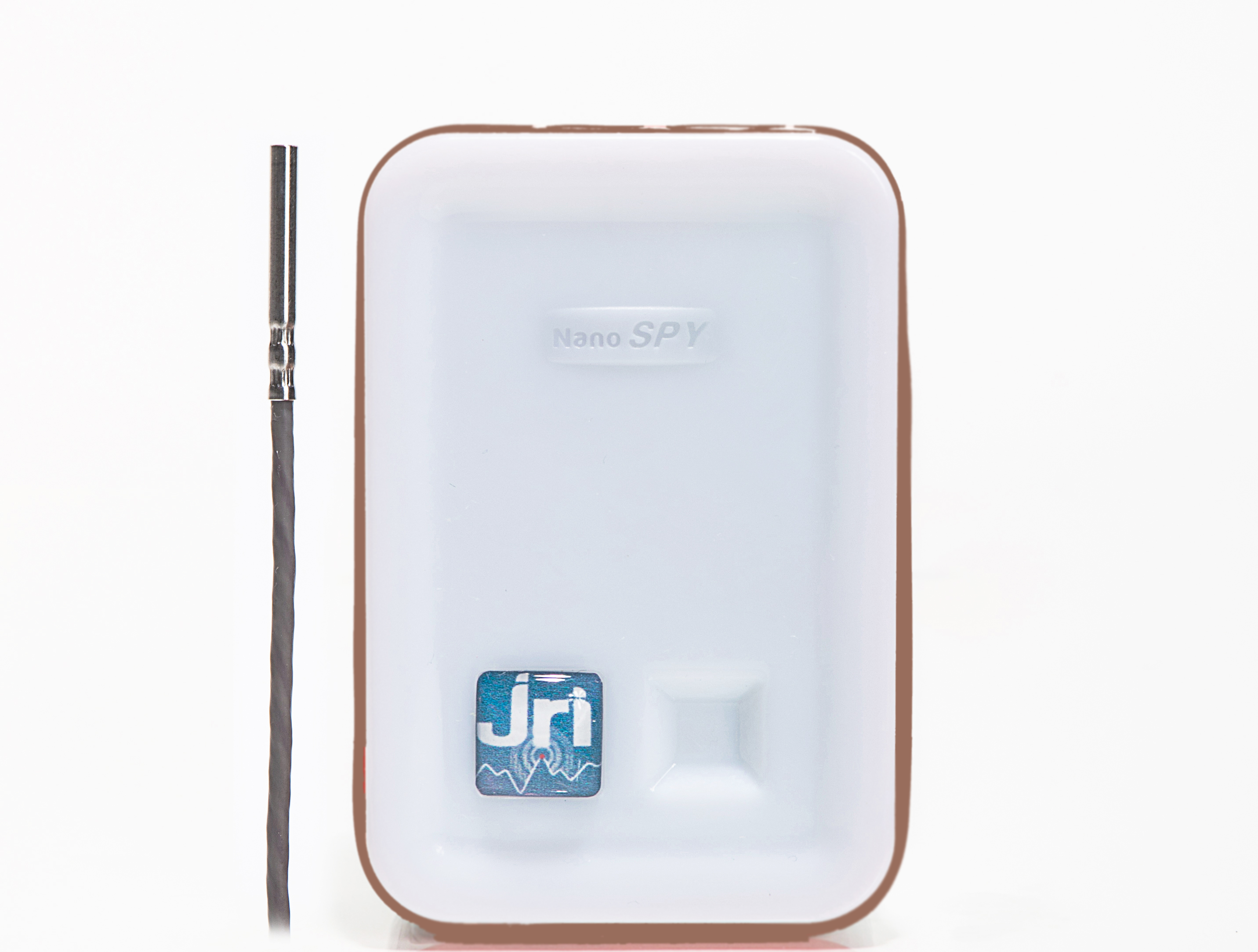

Wireless Mini Data Loggers Temperature NanoSPYT3 face

Standard measuring instrument for the Nano SPY range sensors

Designed to monitor thermo-controlled chambers, the mini data logger Nano SPY Reference transmits data to a nearby Nano SPY LINK transmission module, by 2.4 GHz radiofrequency communication. The measurements are then sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application.

If thresholds are exceeded, alerts are transmitted in real time to react immediately.

It can be fixed thanks to its magnet outside the equipment.





WirelessMiniDataLoggersTemperatureNanoSPYReferencelight
WirelessMiniDataLoggersTemperatureNanoSPYReferenceback
WirelessMiniDataLoggersTemperatureNanoSPYReferencedown



BENEFITS

  • Easy to use : the Nano SPY Reference is ready to use and has operating and alarm lights
  • Excellent measurement accuracy
  • Easy to install with fixing eyelets and integrated magnets
  • Replaceable battery and non disconnectable external probe



Specifications

  • Measurement range : -196°C to +200°C
  • Temperature measurement accuracy : ± 0.15°C from 0 to +40 °C, ± 0.20°C from -30°C to 0 and from +40 to +130°C, ± 0.30°C from +130 to +200°C, ± 0.50°C out this range, ± 0.60°C to -196°C
  • Communication frequency : 2,4 GHz
  • Memory : 10 000 data points
  • Sensors : External Class A PT100 - Ø2,9x25mm, 3m cable lenght
  • Dimensions : 63 x 42 x 25 mm
  • Weight : 60 g
  • Power supply : Lithium battery 3,6V replaceable
  • Battery life : 6 years
  • Identification ring : brown
  • Part nr : 12521 EU : Nano SPY Reference / 12521 EX : Nano SPY Reference without battery





Related video
JRI MySirius, the IoT temperature monitoring solution
Watch the presentation video and learn how the JRI MySirius solution can be efficient to monitor temperature and many other parameters during transportation and storage of sensitive products
