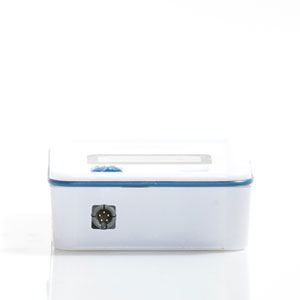

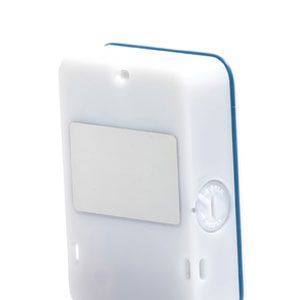

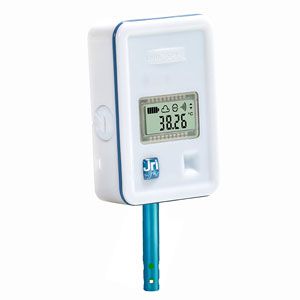

The LoRa® SPY Digital sensor measures and records temperature and simplifies the calibration probe process
The LoRa® SPY Digital is designed to monitor temperature in cold room and any under-controlled equipment and also for temperature and humidity in warehouse.

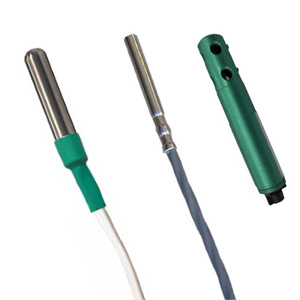

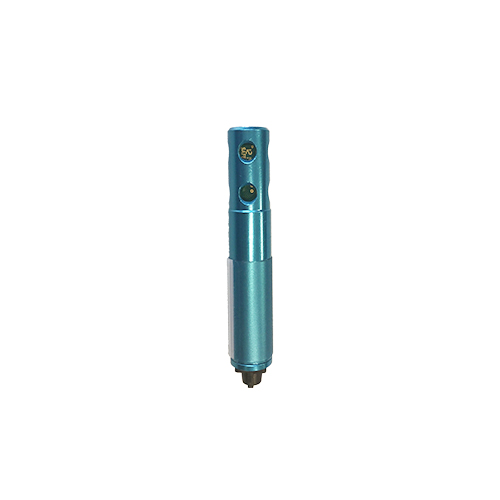

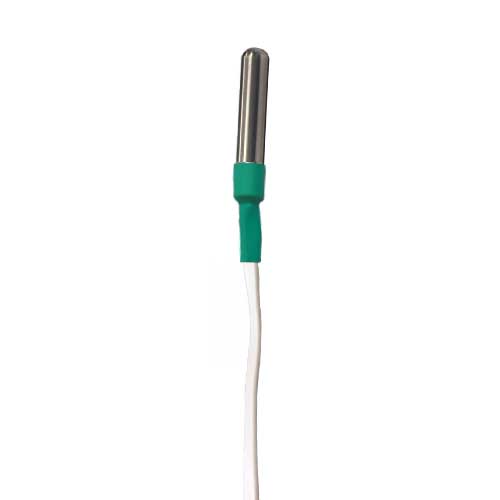

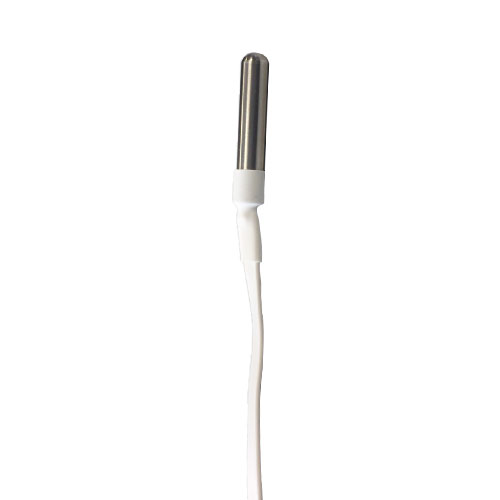

It can only be used with external removable JRI temperature digital probes which have an internal memory storing their calibration adjustment coefficients and other metrological data.
These properties allow to realize probe's calibration in laboratory by a simple exchange with a new calibrated temperature probe, without any monitoring interruption of your thermo-sensitive products.
Data are sent to the JRI secure Cloud by the LoRaWANTM network of telecom operators members of LoRa AllianceTM or by a Micro Gateway private network data transmission module.
In case of threshold excursions, real-time alerts are sent.
Temperature measurements are managed on the JRI MySirius temperature monitoring web application.
BENEFITS
- Long-range LoRaWAN connectivity
- Metrolology services simplified thanks to the external digital probes
- Easy to use : LoRa SPY Digital is ready to use and has operating and alarms lights
- LCD display
- Excellent measurement accuracy
- Fixing eyelets and integrated magnets
- Replaceable battery
Specifications
- Measurement range and accuracy: depending on JRI digital probes
- Communication frequency: 868 or 915 MHz
- Memory: 10 000 data points
- Radio range: Up to 16 km open field range
- Interface: Status LED lights, On/Off touch sensitive button, LCD display
- Dimensions: 87 x 64 x 25 mm
- Weight: 100 g
- Power supply: Replaceable Lithium 3,6v battery
- Battery lifetime: 2 years
- Identification ring : Blue
- Binder connector
- Compliance: CE, ROHS, FCC, EN 300 220, NF EN 12830 (when the 06556 probe is used in storage and transport applications), RCM
- Delivered without probe
- Part nrs:
- 11809E : LoRa SPY Digital without probe 868 MHz
- 1809X : LoRa SPY Digital without probe 868 MHz (Without battery)
- 12276E : LoRa SPY Digital without probe 915 MHz
- 12276X : LoRa SPY Digital without probe 915 MHz (Without battery)
- 13628E : LoRa SPY Digital without probe 915 MHz Australia
- 13628X : LoRa SPY Digital without probe 915 MHz Australia (Without battery)
