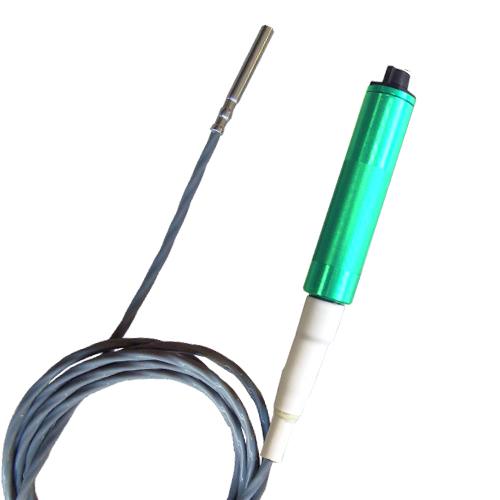

The low temperature digital probe designed for X2 modelling
The Low-Temperature Green Digital Sensor is a digital sensor type PT100 Class A standardized (CEI751), which knows a low drift (type ≤0,1°C) after one year of use.
It has an internal memory storing its calibration coefficients.
Interchangeable, it allows calibration to be performed by simple exchange or with the help of the JRI-MySirius Calibration module without interrupting equipment monitoring.
The data from a metrological operation is automatically transferred to the JRI software.
This digital probe designed for X2 modelling is compatible with LoRa SPY Digital, Nano SPY Digital and Nova SPY loggers.
Specifications
- Measurement range: From 0°C to -200°C
- Measurement accuracy : ±0.2°C from -40°C to -90°C, ±0.3°C from 0° to -40°C and ±0.5°C from -90 to -196°C
- Combined uncertainty : between 0.037°C and 0.06°C
- Type of sensor : Stainless steel
- Dimensions : Ø2.9x35mm
- Type and dimensions of cable : Fluoropolymere cable - Ø2.9mm - 3m
- Protection index of sensor and cable : IP 68
- Type and dimensions of converter : Aluminium - Ø11x51mm
- Type of connector : Binder
- Part nr : 12204 4 Low Temperature Digital Sensor Evolution
