The LoRa® SPY U recorder is designed to measure and record data coming from differents types of sensors

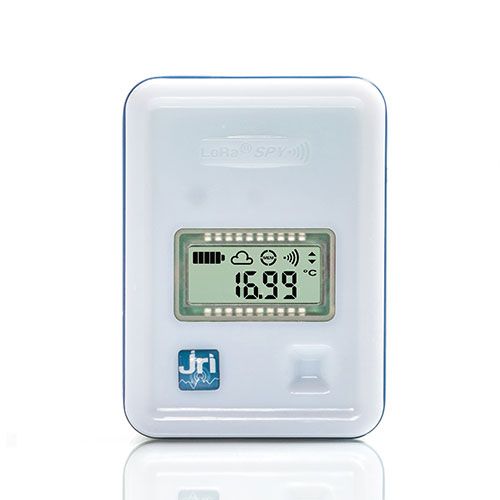

The LoRa SPY U is an universal analog input recorder with a long-range LoRaWAN connectivity.
It is compatible with the following type of analog sensors: PT 100, current (4-20mA / 0-20mA), voltage (0-1V), counting or dry contact.
Data are sent to the JRI MySirius secure Cloud for optimal exploitation on the JRI MySirius monitoring web platform, or directly to your servers (using webAPI or LoRa SPY U control protocol). It connects to the LoRaWANTM network of telecom operators members of the LoRa AllianceTM or to a Micro Gateway private network data transmission module.
In case of thresholds excursions, real-time alerts are sent by SMS text message, mail or voice message.
BENEFITS
- Long-range LoRaWAN connectivity

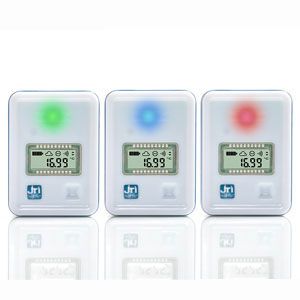

- Easy to use : LoRa SPY U is ready to use and has operating and alarms lights
- LCD display
- Excellent measurement accuracy : reliability of a professional measuring instrument
- Robust

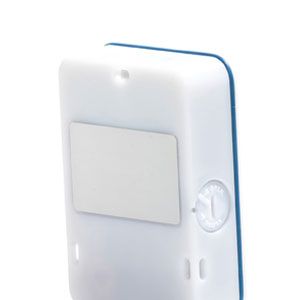

- Fixing eyelets and integrated magnets
- Replaceable battery
Specifications
| Type of input | PT100 | Current / Voltage | Counting | Dry Contact |
| Measurement range | -200°C to +300°C | 0 to 20 mA or 4-20 mA or 0-1V | 0 to 65535 | Dry contact or 0-3,3V max |
| Resolution | 0,01°C | 0,001 mA | 1 | - |
| Accuracy | ±0,3°C from -80°C to -20°C ±0,2°C from -20°C to +50°C ±0,3°C from +50°C to +140°C ±0,5°C out of this range |
±0,01 mA | ±1 | - |
- Communication frequency : 868/915 MHz
- Memory : 10 000 data points
- Radio range : Up to 16 km open field range
- Interface : Status LED lights, On/Off touch sensitive button, LCD display
- Dimensions : 87 x 64 x 25 mm
- Weight : 100 g
- Power supply : Replaceable Lithium 3,6v battery
- Identification ring : Blue
- Battery lifetime : 2 years
- Part nrs :
- 868 MHz with battery : 11810 E
- 868 MHz without battery : 11810 X
- 915 MHz livré avec pile : 12277 E
- 915 MHz without battery : 12277 X
- 915 MHz Australia with battery : 13624 E
- 915 MHz Australia without battery : 13624 X
Documents
 |
Download the user manual |
|
Download the datasheet |
|
Download the LoRa SPY U wiring cable datasheet |
Probes
