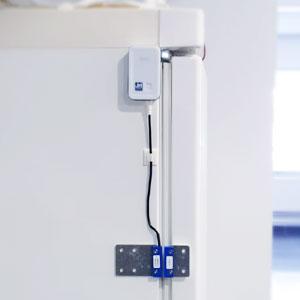

Door contact switch recorder to detect extended opening
The Nano SPY Door Contact sensor detects the extended opening of a door with excellent speed and accuracy.
It is particularly suitable in the pharmaceutical and food industries for anticipating a possible rise in temperature of chambers.
The Nano SPY Door Contact data logger transmits data to a nearby Nano SPY LINK transmission module, by 2.4 GHz radiofrequency communication.
The measurements are sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius web application.
If an open or closed state is held for a long time, alerts are transmitted in real time to react immediately.
BENEFITS
- Allows the anticipation of the triggering of a temperature alarm
- Preventive alert to avoid the quality process following the possible temperature degradation in monitored cabinets
- Oppose human oversights such as a poorly closed door
- Easy to install with double-sided or with screws for permanent installation
- Compact solution with short cable
Specifications
- Response time : 1.7 milliseconds
- Communication frequency : 2,4 GHz
- Memory: 10 000 data points

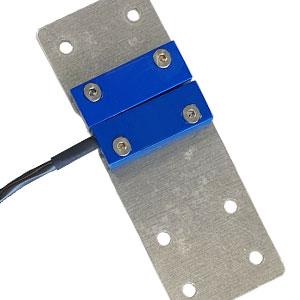

- Sensors : Magnetic door contact with a 20 cm cable length
- Case Dimensions & Weight : 63 x 42 x 25 mm - 60 g
- Power supply : Lithium 3,6V replaceable battery
- Battery life : 6 years
- Identification ring : Blue
- Part nrs :
- with battery : 13395 E
- without battery : 13395 X
