The long-range wireless data logger LoRa® SPY Reference is a standard measuring instrument for temperature sensors
A reference device designed to perform calibrations of connected loggers in the LoRa® SPY range, the LoRa® SPY Reference recorder measures and records temperature with high precision.
Its metrological specificities allow it to be perfectly adapted to the monitoring of equipment with very limited temperature ranges.
Data measurements are managed on the JRI MySirius temperature monitoring web platform.
BENEFITS
- Long-range LoRaWAN connectivity
- Easy to use : LoRa SPY Reference is ready to use and has operating and alarms lights
- LCD display
- Excellent measurement accuracy
- External probe
- Fixing eyelets and integrated magnets
- Replaceable battery
Specifications
- Measurement range : -196°C to +200°C
- Accuracy : ±0,12°C from 0 to +50°C, ±0,20°C from -30 to 0°C and from +50°C to +130°C, ± 0,35°C from +130°C to +200°C, ±0,50°C out this range
- Communication frequency : 868/915 MHz
- Memory : 10 000 data points
- Radio range : Up to 16 km open field range

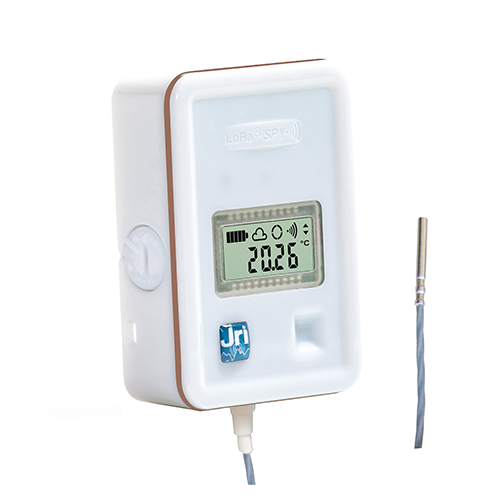

- Sensors : External Class A PT 100 - Stainless steel Ø2,9x25mm 3m cable lenght

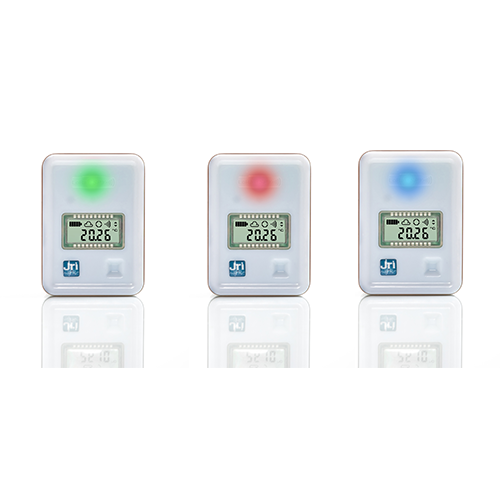

- Interface : Status LED lights, On/Off touch sensitive button, LCD display
- Dimensions : 87 x 64 x 25 mm
- Weight : 100 g
- Power supply : Replaceable Lithium 3,6v battery
- Battery lifetime : 2 years
- Part nr. :
- 868 MHz : 12408 2E
- 868MHz without battery : 12408 2X
- 915MHz without battery :12409 EX
