The LoRa® SPY T4 monitors the temperature in hot water systems
The LoRa SPY T4 measures and records the temperature inside the pipes using an external surface PT 100 probe.

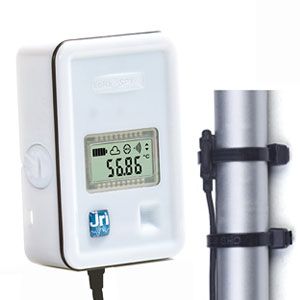

Designed for monitoring the temperature in hot water systems, it can be fastened to the pipe with cable ties without damaging it.
The reflector eliminates the influence of the external temperature on the quality of the measurement inside the pipe.
Data are sent to the JRI secure Cloud by LoRaWANTM network of the telecom operators members of the LoRa AllianceTM, or by a Micro Gateway private network data transmission module.
In case of threshold excursions, real-time alerts are sent.
Temperature measurements are managed on the JRI MySirius temperature monitoring web application.
BENEFITS
- Long-range LoRaWAN connectivity

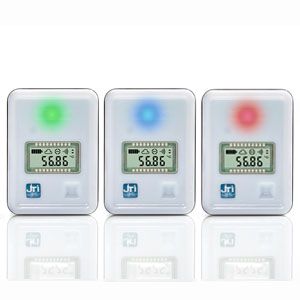

- Easy to use : LoRa SPY T4 is ready to use and has operating and alarms lights
- LCD display
- Excellent measurement accuracy
- External probe (non removable)
- Option : Reflector to strap on the pipe and isolate the sensor from the ambient conditions (pipe>Ø20mm/Ø120mm<)

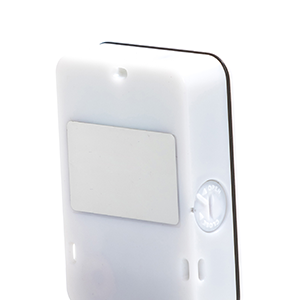

- Fixing eyelets and integrated magnets
- Replaceable battery
Specifications
- Measurement range : -40°C to +85°C
- Accuracy : ±0.3°C on a copper pipe ; ±0.5°C on a C-PVP pipe
- Communication frequency : 868/915 MHz
- Memory : 10 000 data points
- Radio range : Up to 16 km open field range
- Sensors : External Class A PT 100 probe
- Interface : Status LED lights, On/Off touch sensitive button, LCD display
- Dimensions : 87 x 64 x 25 mm
- Weight : 100 g
- Power supply : Replaceable Lithium 3,6v battery
- Battery lifetime : 2 years
- Identification ring : Black
- Part nrs. :
- 868 MHz : 12398E 2
- 868 MHz without battery : 12398X 2
- 915 MHz without battery : 12797X 2
- Option : Reflector Pack : 12413
