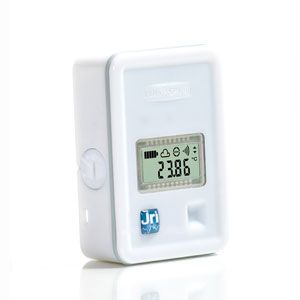

The long-range wireless data logger LoRa® SPY T1 measures and records temperature and door opening at each step of the supply chain
The LoRa® SPY T1 is particularly adapted to the supply chain applications, transport and warehouse storage areas and is compliant with the EN 12 830 standard.
Data are sent to the JRI secure Cloud by the LoRaWAN™ network of the telecom operators members of the LoRa Alliance™, or by a Micro Gateway private network data transmission module.
In case of threshold excursions, real-time alerts are sent.
Temperature measurements are managed on the JRI MySirius temperature monitoring web application.
BENEFITS
- Long-range LoRaWAN connectivity
- Easy to use : LoRa SPY T1 is ready to use and has operating and alarms lights
- LCD display
- Excellent measurement accuracy
- Internal probe
- IP 68

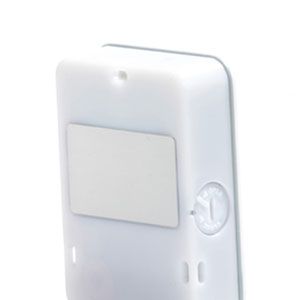

- Fixing eyelets and integrated magnets
- Replaceable battery
- EN 12 830 compliant
Specifications
- Measurement range : -30°C to +70°C
- Accuracy : ±0.4°C from -20°C to +40°C and ±0.5°C out of this range
- Communication frequency : 868/915 MHz
- Memory : 10 000 data points
- Radio range : Up to 16 km open field range
- Sensors : PT 100 and light detector

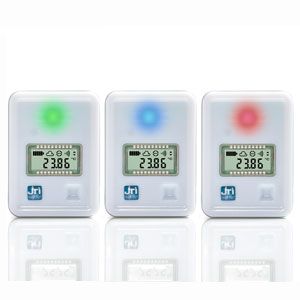

- Interface : Status LED lights, On/Off touch sensitive button, LCD display
- Dimensions : 87 x 64 x 25 mm
- Weight : 100 g
- Power supply : Replaceable Lithium 3,6v battery
- Battery lifetime : 2 years
- Identification ring : Grey
- Part nr.:
- 11802E: LoRa® SPY T1 868 MHz (with battery)
- 11802X : LoRa® SPY T1 868 MHz (without battery)
- 12267E : LoRa® SPY T1 915 MHz (with battery)
- 12267X : LoRa® SPY T1 915 MHz (without battery)
